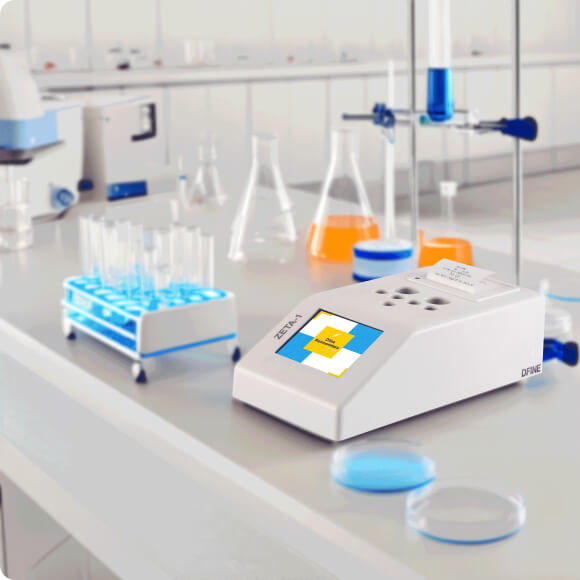

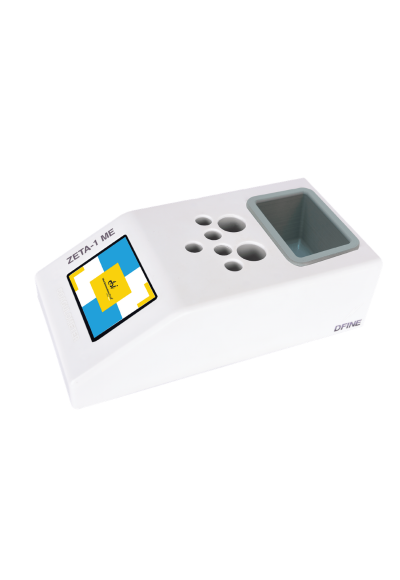

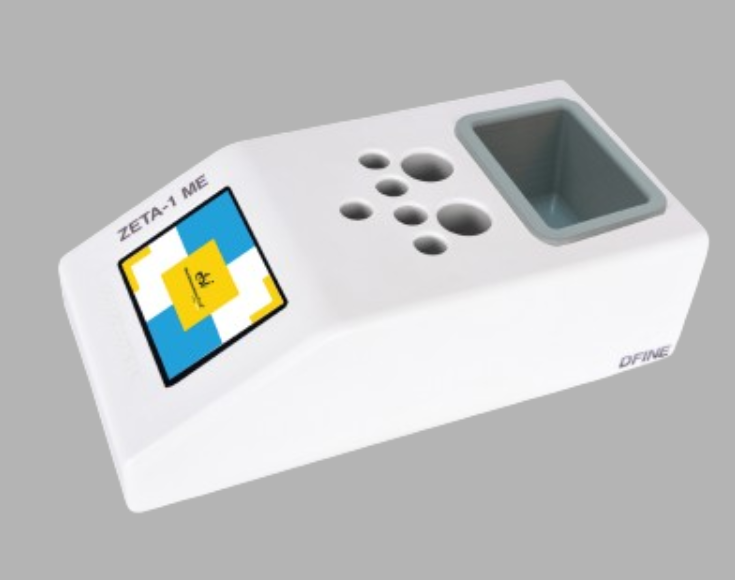

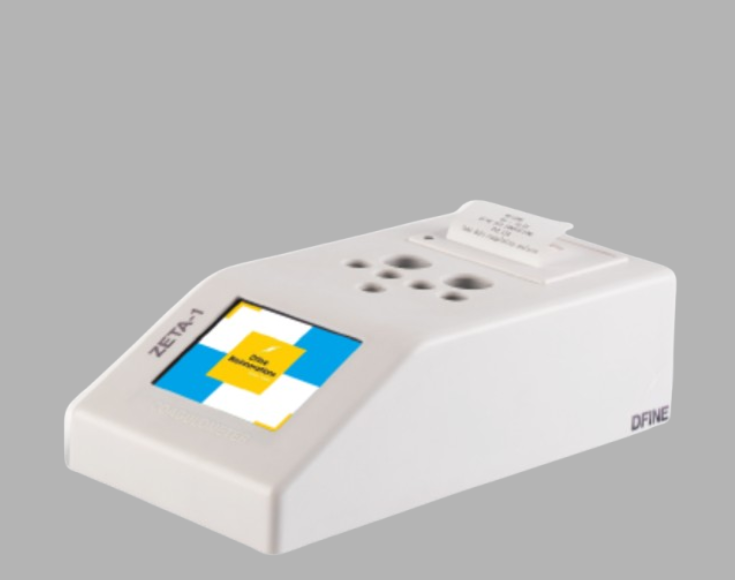

FibriTimer Zeta-1
FibriTimer Zeta-1 is a Semi-Automated Coagulation Analyzer which is used for the determination of clotting tests such as prothrombin time (PT), activated partial thromboplastin time (aPTT), fibrinogen (FIB), Lupus, factor assay & so on.
The zeta – 1 instrument comes with the patented dual technology on a single platform using a single cuvette. Thus, helping the user to perform coagulation testing on both optical & mechanical methods. When used with the suitable reagents, the sample can be citrated plasma, control/calibrator or even whole blood.
Key Features
- Dual technology
- 5-inch touch capacitive screen.
- Easy menu options
- Inbuilt thermal printer
Specification
- Type : Single channel haemostasis system
- Number of measuring channels : 2
- Display : 3.5-inch touch capacitive screen
- Measuring principle : Optical & Mechanical(Ball Method)
- Tests (Optical) : PT, aPTT, -Factor assay, aPCR, etc*
- Tests (Mechanical): PT, aPTT, TT, FIB, LA, Factor assay, aPCR, etc*
- Default testing mode: Optical (LED) 630 nm
- Cuvette Incubation stations: 4
- Reagent Incubation stations : 2
- Measuring range : 0 – 200 Sec (Optical)
- Working Temperature : 5°-26°C
- Measuring block temperature : 37.0°C (±0.1°C)
- Power requirements :
- Input Voltage : 100V to 300V AC
- Output voltage – 12V DC, 2A+- 5%
- Relative Humidity : ≤ 90%
- Atmospheric Pressure : 86 kPa〜106 kPa
- RS 232 : Unidirectional
- Dimensions : 218 x 125 x 93 mm (L-W-H)
- Weight : 12OO g

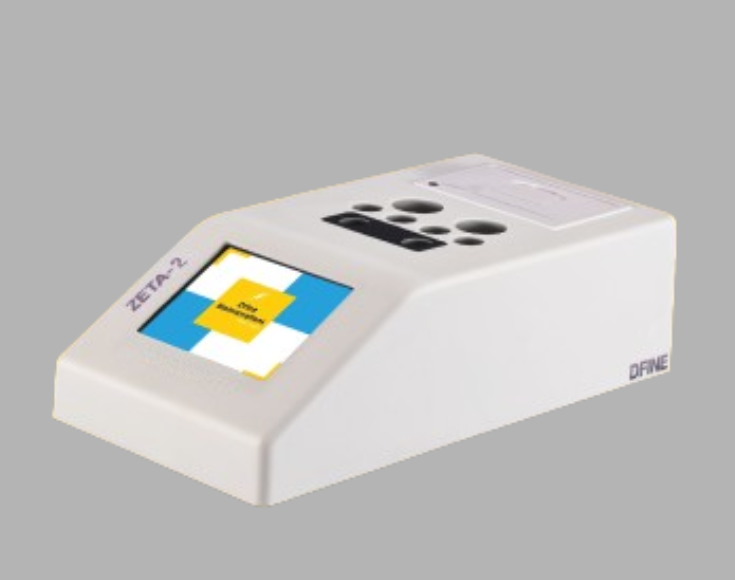

FibriTimer Zeta-2
FibriTimer Zeta-2 is a Semi-Automated Coagulation Analyzer which is used for the determination of clotting tests such as prothrombin time (PT), activated partial thromboplastin time (aPTT), fibrinogen (FIB), Lupus, factor assay & so on.
Key Features
- Double Channel
- 3.5-inch touch capacitive screen.
- Easy menu options
- Inbuilt thermal printer
Specification
- Type : Double channel haemostasis system
- Number of measuring channels : 2
- Display : 3.5-inch touch capacitive screen
- Measuring principle : Mechanical by Ball Method.
- Tests (Mechanical): PT, aPTT, TT, FIB, LA, Factor assay, aPCR, etc*
- Cuvette Incubation stations: 4
- Reagent Incubation stations : 2
- Measuring range : 4.5-999 sec (Mechanical)
- Working Temperature : 5°-26°C
- Measuring block temperature : 37.0°C (±0.1°C)
- Power requirements :
- Input Voltage : 100V to 300V AC
- Output voltage – 12V DC, 2A+- 5%
- Relative Humidity : ≤ 90%
- Atmospheric Pressure : 86 kPa〜106 kPa
- RS 232 : Unidirectional
- Dimensions : 218 x 125 x 93 mm (L-W-H)
- Weight : 12OO g
FibriTimer Zeta-1

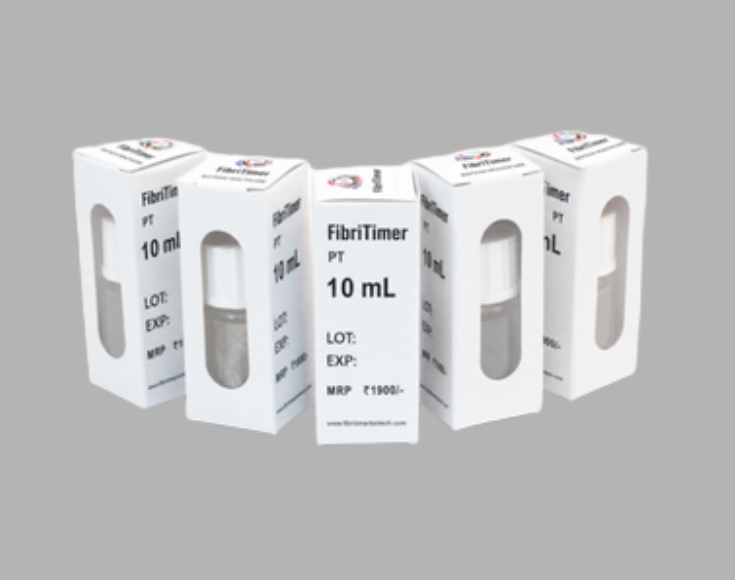

A comprehensive line of reagents, kits, calibrators and controls for use in routine and specialty coagulation testing.
Key Features
A comprehensive line of reagents, kits, calibrators and controls for use in routine and specialty coagulation testing.
Specification
A comprehensive line of reagents, kits, calibrators and controls for use in routine and specialty coagulation testing.
Accessories
FibriTimer Zeta-1 Accessories
- Adaptor with inbuilt Power backup
- Thermal roll
- Buffer cup
- Cuvettes & Balls
- User Manual
- Tweezer
- Ball Dispenser
FibriTimer Zeta-2
- Adaptor with inbuilt Power backup
- Thermal roll
- Buffer cup
- Cuvettes & Balls
- User Manual
- Tweezer
- Ball Dispenser
.
